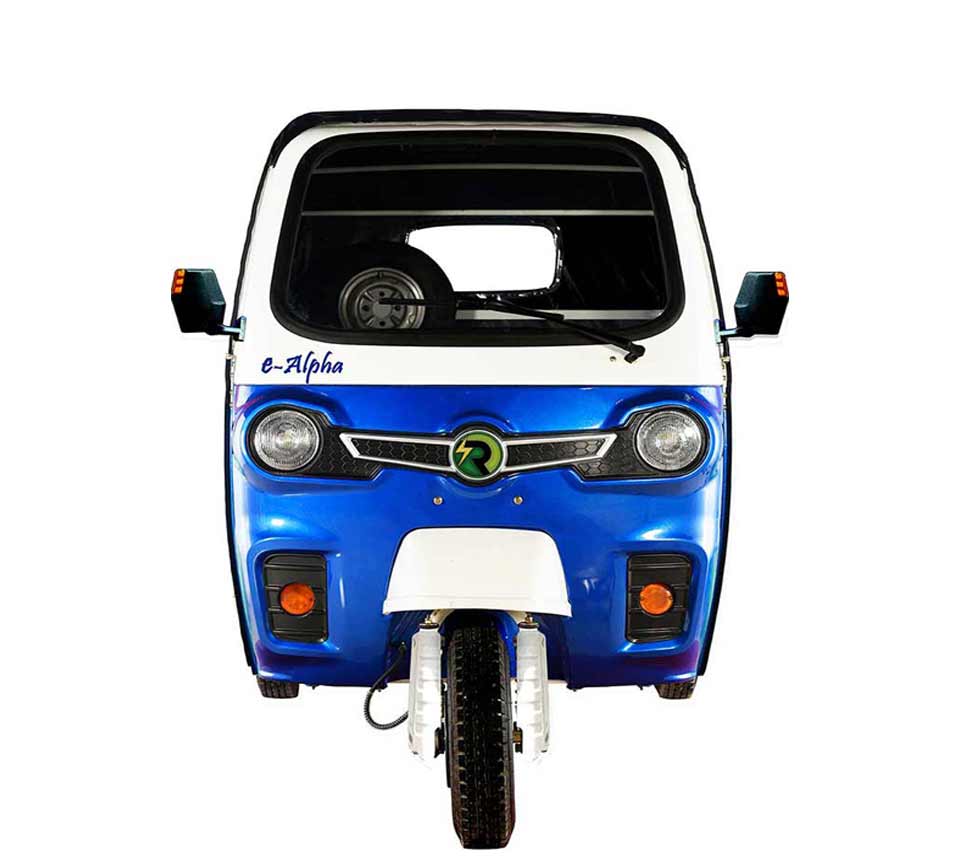

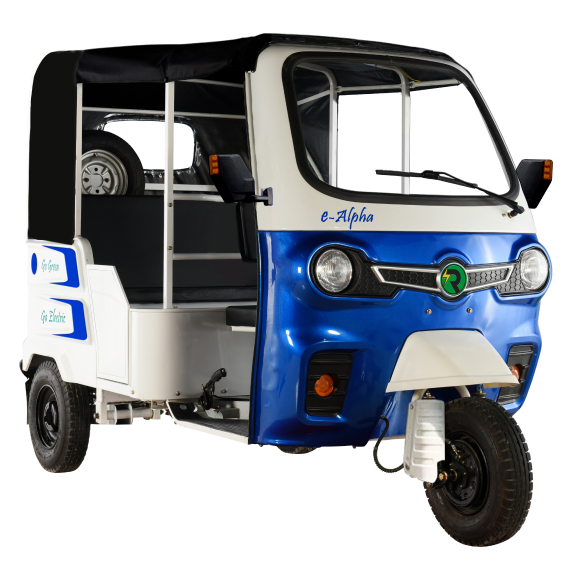

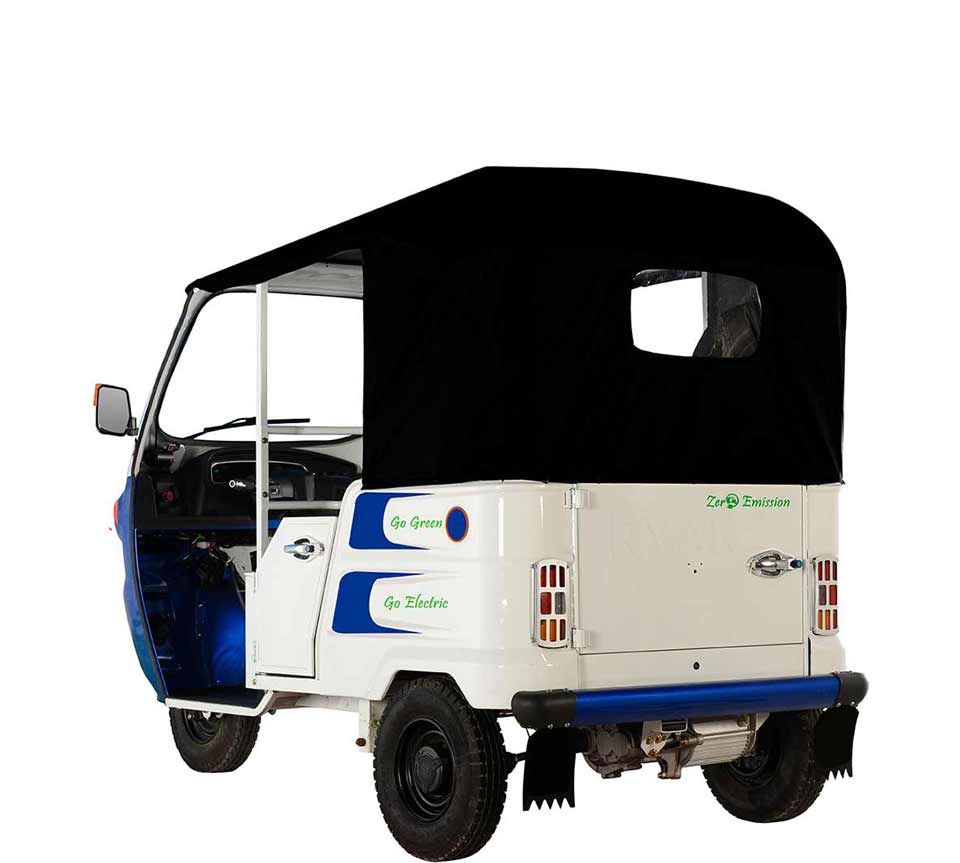

e-alpha

Ryan Passenger

Model

Electric 3 Wheeler

Vehicle Type

Driver +3 Passengers

Seat arrangements

Features

  • Digital dashboard
  • Rear Camera with sensors
  • Bluetooth connectivity
  • Side Mirrors with indicators
  • USB
  • Radio

Economy

Drive at economy
As low as Rs.1 per Km

Electrical Specification

  • BLDC motor Motor Type
  • 4kW Motor rated power
  • 60V Nominal operating voltage
  • FOC controller Controller type
  • Auto shaft Transmission
  • Lithium Iron Phosphate Battery Battery type
  • 7200 Whatt.Hrs Battery Capacity
  • 60V Battery nominal voltage

Mechanical Specification

  • 2800mm Length
  • 1285mm Width
  • 1800mm (unloaded) Height
  • 2000mm Wheelbase
  • < 3m Minimum turning radius
  • 175mm (unloaded) / 150 mm (fullload) Ground Clearance:
  • 4:00-12 Tyre dimension
  • 350Kgs Curb Weight (with Battery)
  • Handle Drive type

Vehicle Parameters

  • 50km/hr Top Speed
  • 20% Gradeability
  • 100km* Drive range
  • 7 Hrs Charge time
  • IP 65/67 Ingress protection
  • -5°C to 45°C Operating Temperature
  • Hydraulic brakes Braking
  • Front and Rear spring shock absorbers Suspension
Download Brochure

Ryan Energy PVt. Ltd (REPL) has been established by prominent players of renewable energy sector of Nepal with the aim of building/ assembling electric vehicles in the country. To start with, REPL will focus on assembling 4 seaters 3 wheelers in Terai and mid-hill regions. This will be folowed by sale of two wheeler electric vehcles. In the second phase, the company plans to implement battery swapping facility anbd establishment of charging stations.
